CPX400SA
Κωδικός προϊόντος: CPX400SA
Κατασκευαστής: AimTTiBench/System/ATE Programmable DC Power Supply Single Output, 60V/20A 420W, Isolated Analogue Interface Διαθέσιμο

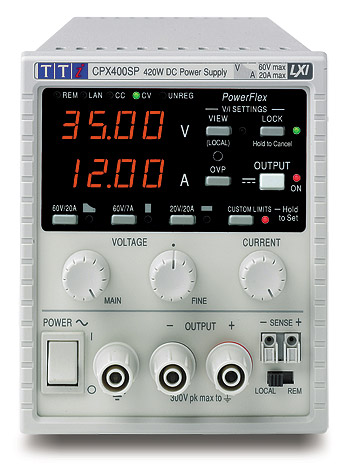

Bench/System/ATE Programmable DC Power Supply Single Output, 60V/20A 420W, Isolated Analogue Interface
Bench/System/ATE Programmable DC Power Supply Single Output, 60V/20A 420W, Isolated Analogue Interface
- PowerFlex design gives variable voltage and current combinations within a maximum power range
- Up to 60 volts and up to 20 amps
- 180 watts or 420 watts maximum per output
- Isolated outputs can be wired in series or parallel
- Constant voltage or constant current operation
- Settings Locking (S-Lock)
- PowerFlex or fixed-range operation
- Variable OVP trips
- Selectable remote sense terminals
- Compact quarter or half rack 3U case size
- Isolated analogue remote control (CPX400SA only)
- RS232, USB & LXI compliant LAN (P models only)
- GPIB Option (P models only)
