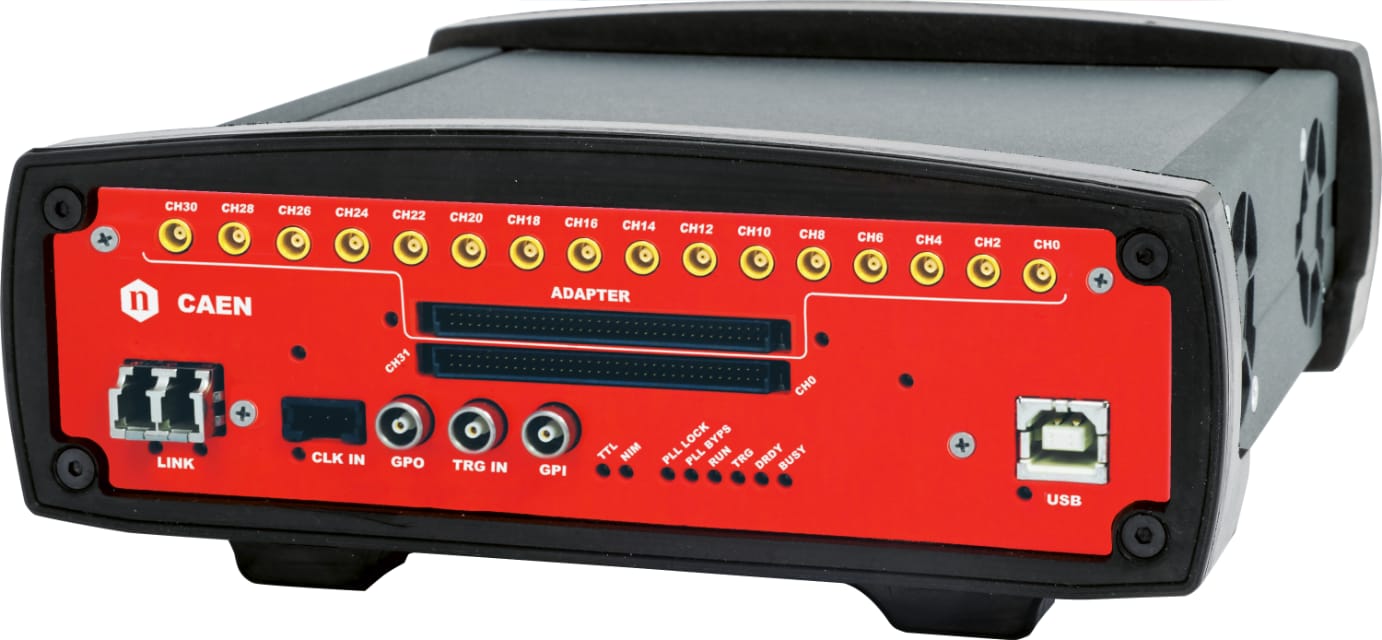

DT5740

32 Channel, 12 bit, 62.5 MS/s Digitizer:

• 12 bit 62.5 MS/s ADC
• 32 / 16 channels
• ERNI SMC Dual Row 68pin connector (32 channels)
• Auxiliary ERNI SMC Dual Row 68pin connector
• MCX connectors (16 channels by using auxiliary SMC)
• 2 Vpp single ended input range (10 Vpp also available)
• 16-bit programmable DC offset adjustment: ±1 V (±5 V)
• Trigger Time stamps
• Memory buffer: 192 kS/ch, up to 1024 events
• FPGA for real-time data processing
• Programmable event size and pre-post trigger adjustment
• Optical Link interface (CAEN proprietary protocol)
• USB 2.0 compliant interface
• Firmware upgradeable via USB or Optical Link
• Libraries, Demos (C and LabView) and Software tools for Windows and Linux
• External AC-DC Power Supply Adapter (+12 V)
• Dimensions: 154x50x164 mm3(WxHxD)
