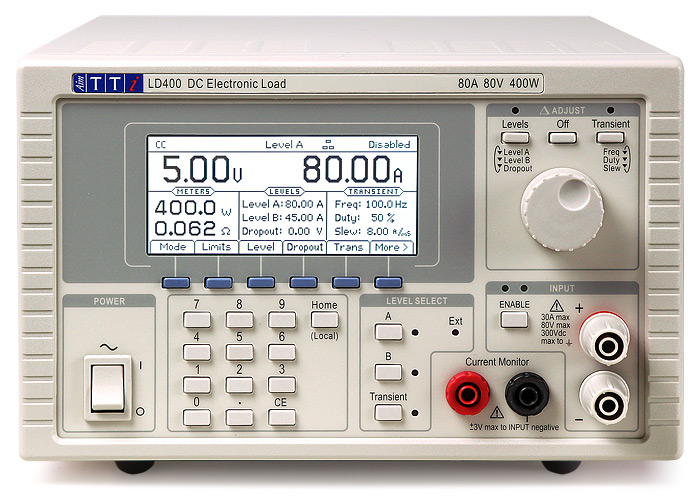

LD400
Κωδικός προϊόντος: LD400
Κατασκευαστής: AimTTi Διαθέσιμο
Electronic DC Load, 80V, 80A, 400W with analogue control interface only
- ersatile solution for testing dc power sources
- Constant current, resistance, conductance, voltage and power modes
- Wide voltage and current range, 0 to 80V and 0 to 80A
- 400 watts continuous dissipation at 28°C (360W at 40°C)
- 600 watts short-term dissipation (up to 60 seconds)
- Low minimum operating voltage of <1V at 40A
- High resolution and accuracy for level setting
- Built-in transient generator with variable slew
- Current monitor output for waveform viewing
- Variable drop-out voltage for battery testing
- High resolution backlit graphic LCD with soft key control
- Analogue remote control of levels and TTL control of on/off and transient switching
- Front and rear input terminals (front terminals 30A max.)
Στείλτε μια ερώτηση για το προϊόν
Διαθέσιμο
Electronic DC Load, 80V, 80A, 400W with analogue control interface only
- ersatile solution for testing dc power sources
- Constant current, resistance, conductance, voltage and power modes
- Wide voltage and current range, 0 to 80V and 0 to 80A
- 400 watts continuous dissipation at 28°C (360W at 40°C)
- 600 watts short-term dissipation (up to 60 seconds)
- Low minimum operating voltage of <1V at 40A
- High resolution and accuracy for level setting
- Built-in transient generator with variable slew
- Current monitor output for waveform viewing
- Variable drop-out voltage for battery testing
- High resolution backlit graphic LCD with soft key control
- Analogue remote control of levels and TTL control of on/off and transient switching
- Front and rear input terminals (front terminals 30A max.)
